Our industrial air cooled heat exchangers are engineered for high-temperature, high-pressure, and corrosive process services. Designed to meet refinery, petrochemical, and gas processing requirements, each unit is customized based on your operating conditions, project specifications, and international standards.
● Compliant with API 661 Standards and ASME Section VIII requirements.
● Custom-engineered forced draft and induced draft configurations.
● High-efficiency finned tube heat exchanger design for maximum heat dissipation.
● Durability for harsh refinery and petrochemical environments.

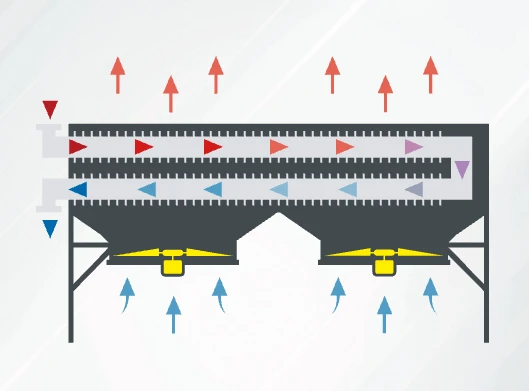

Air is pushed through the tube bundles.
Suitable for:

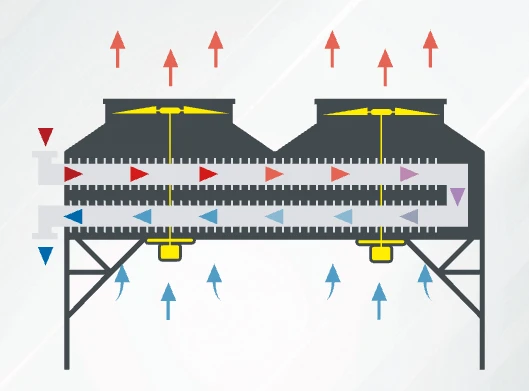

The fan draws ambient air through the exchanger.
Suitable for:
Natural ventilation without mechanical fans, driven by temperature and elevation differences.
Suitable for:
| Item | Specification |
|---|---|
| Cooler Type | Forced / Induced / Natural Draft |
| Tube Material | Aluminum (ALU) / Hot Dip Galvanized (HDG) |
| Fin Types | Spiral-wound, Double-wrapped, Bimetallic, Embedded, Grooved |
| Tube Diameter Range | 9 mm – 60 mm |
| Fan System | High-efficiency, low-noise fans (if applicable) |
| Noise Control | Efficiency Silence Fan |
| Special Systems | Recirculation / Air Humidification |
| Configuration | Vertical / Horizontal / In-line / Roof-mounted |
| Operating | Hot / Cold / Tropical / Harsh climate |
| Environment | Up to 30 years (HDG) |
| Design Life | Fully compliant with API 661 and ASME Section VIII |
| Mechanical Standards | Fully tailor-made |
| Customization | Fully tailor-made |
| Component | Available Materials | Key Characteristics | Recommended Environment |
|---|---|---|---|
| Tube Bundle | Carbon Steel, Stainless Steel (304/ 316L), Duplex, Titanium, Inconel | High pressure & corrosion | Refinery, Acid Gas, Mining |
| Fins | Aluminum (ALU), Copper (CU), Carbon Steel, Stainless Steel, Ti-Al Alloy | Maximum thermal conductivity | Standard to Extreme Heat |
| Frame & Structure | Hot Dip Galvanized (HDG) Steel, Specialized Coatings | 30-year design life; anti-abrasion | Marine, Coastal, Desert |
Fin materials are fully customizable for thickness and operating temperature requirements, including
high-grade Aluminum, Copper, Carbon Steel, Stainless Steel, and Titanium-Aluminum alloys.
For comprehensive technical data and specific fin designs, please explore our Finned Tube Product Page
Project characteristics
● Extremely large heat rejection demand
● Continuous 24/7 operation
● Dozens to hundreds of air fin cooler units operating in parallel
Gelan solution

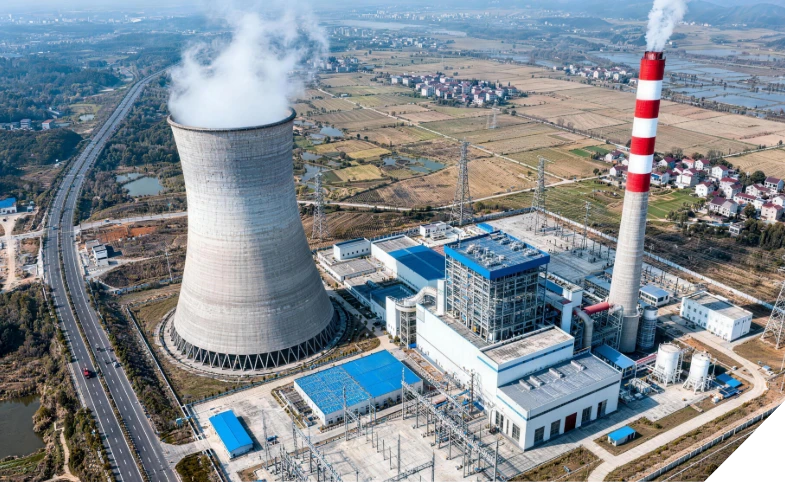

Gelan has delivered large air fin cooler banks for power plants and major industrial process facilities, where a single standard unit can reach approximately 11 × 7 × 6 meters.
Many projects involve hundreds of air fin coolers, covering areas equivalent to several soccer fields.
System-level engineering ensures:
● Uniform airflow distribution
● Stable thermal performance across all units
● Long-term mechanical reliability
Project characteristics
● High process and air outlet temperatures (>100°C)
● Hydrocarbon services under pressure
● Strict safety, inspection, and maintenance requirements
Gelan solution
For oil & gas and refinery applications, Gelan supplies forced draft and induced draft air fin coolers equipped with aluminum finned tubes.
Design features include:
● Easy tube bundle access for inspection and maintenance
● High-efficiency finned tubes for large heat duty
● Cold air operation reducing electrical consumption
Value delivered
● Reliable operation under high-temperature conditions
● Reduced operating costs
● Compliance with demanding refinery standards
Project characteristics
● Corrosive or aggressive process media
● Outdoor installation in harsh industrial environments
● Long service life requirements
Gelan solution

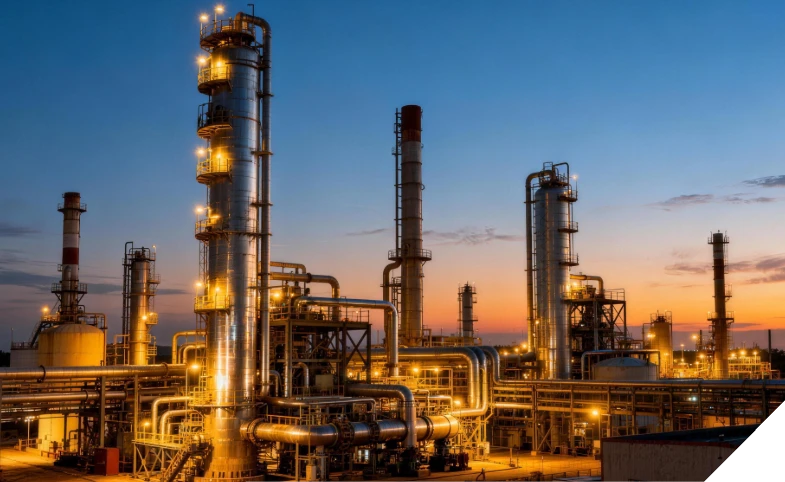

Gelan delivers HDG air fin coolers with hot dip galvanized steel structures and corrosion-resistant tube materials for chemical, petrochemical, and mining facilities.
Engineering focus includes:
● Material-driven design (carbon steel, stainless steel, duplex, titanium, etc.)
● Robust structural design for mechanical durability
● Optional marine or desert coating systems
Value delivered
● Service life up to 30 years
● Reduced maintenance in corrosive environments
● Reliable operation in heavy-duty industrial conditions
Project characteristics
Operation in extreme cold regions (Canada, Siberia, polar areas)
Or high ambient temperatures in tropical and desert climates
Ambient conditions strongly affecting cooling performance
Gelan solution
For cold climates, Gelan integrates internal air recirculation systems with positive and negative step auto-variable fans, allowing independent control of intake air temperature and preventing fluid clogging.
For hot and tropical climates, Gelan applies air humidification systems, including:
● Flow humidifiers
● High-pressure spray systems
● These systems can be integrated into new units or retrofitted to existing air fin coolers.
Value delivered
● Stable operation regardless of ambient extremes
● Extended operating envelope of air-cooled systems
● Adaptability to changing climate or process conditions
● Extended operating envelope of air-cooled systems
● Adaptability to changing climate or process conditions
Air fin coolers eliminate water consumption, reduce corrosion risk, and lower long-term operating costs while being environmentally friendly.
Yes. Gelan designs systems for deserts, marine environments, and arctic regions, including recirculation and air humidification solutions.
Yes. Flow humidifiers and high-pressure spray systems can be integrated or retrofitted to enhance cooling performance.
Absolutely. Tube, fin, header, and structural materials are selected based on process media and environmental exposure.
